Rotor Design Solutions launch new Gerotor design software

26th June 2019 by Jo Davey Leave a Comment

Rotor Design Solutions are delighted to announce the launch of their new Gerotor design software.

A  gerotor pump provides a low noise, smooth, reliable solution to many hydraulic and lubrication systems.

Most commercially available gerotor packages use the equidistant epitrochoid curve as the basis of geometrical design. The Rotor Design Solutions software offers a different solution with the equidistant hypotrochoid curve.

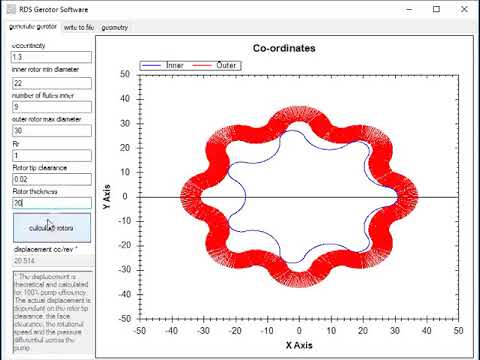

The epitrochoid curve has a mismatch in geometry for the outer and inner rotors that leads to a volume of fluid being constantly recirculated rather than discharged. This volume is called carryover. As can be seen in the picture above, the hypotrochoid curve allows the inner and outer rotors to have matching geometry so the rotors may be designed with virtually zero carryover.

If you are interested in our gerotor software please see our video below.

For further information about how Rotor Design Solutions Ltd could support your business, please email us at sales@rotordesignsolutions.com
